1. Definition

Color reproduction refers to the ability of an imaging system—such as photographic film or a digital camera—to produce colors that are consistent with the human visual perception of the colors in the original scene under standard viewing conditions during image capture and processing. This consistency can be quantified by photographing a standard color chart and comparing the measured colorimetric data with reference values. Common metrics include color difference \( \Delta E \), white-balance error, and saturation deviation.

For photographic film, color reproduction involves a series of chemical and optical processes, including image capture, film processing, and photographic printing. For digital cameras, it primarily depends on signal-processing stages such as white balance, the color correction matrix (CCM), and gamma correction or tone mapping. Color reproduction is not simply a matter of faithfully recording the physical spectrum. Rather, it is the result of the combined effects of the sensor’s spectral sensitivity, the color filter array, illuminant estimation, the color characteristics of the imaging device, and the viewing or output conditions.

Inaccurate color reproduction may manifest as color casts, abnormal saturation, hue shifts, or localized false colors. Typical examples are shown in Figure 1.

2. Key Influencing Factors
2.1 Light Source: Color Temperature and Rendering
The color of an object is determined by the light reflected from it after illumination. Consequently, the characteristics of the light source directly affect the spectral composition of the light entering the camera.

Color temperature is a physical quantity based on blackbody radiation and is used to describe the chromaticity of a light source. It is measured in kelvins (K). An ideal blackbody emits light of different colors as its temperature changes: lower temperatures produce more yellowish or reddish light, such as the light from a 2700 K incandescent lamp, whereas higher temperatures produce more bluish light, such as the light from an overcast sky at approximately 7000 K.

When the color temperature of the light source differs from that of the reference illuminant, the image may exhibit an overall color cast. This effect can be compensated for through white-balance correction.

Color temperature primarily describes the overall color of a light source, indicating whether the light appears more yellowish or bluish. Light sources with the same color temperature may nevertheless have different spectral compositions. Some fluorescent lamps and low-cost LEDs have incomplete or uneven spectral distributions, resulting in poor color rendering. In such cases, certain colors may not be reproduced accurately even when the white balance is correct, because the distortion occurs before the light enters the camera. Color rendering is commonly evaluated using the color rendering index (CRI), particularly the general color rendering index \(R_a\). Values closer to 100 generally indicate better color-rendering performance.

2.2 White Balance

White balance is a camera’s mechanism for compensating for the color of the illumination. Because image sensors do not possess the color constancy of human vision, digital cameras commonly use automatic white balance (AWB). The AWB algorithm estimates the chromaticity of the current light source and applies corresponding gains to the red, green, and blue channels, causing neutral objects to produce approximately equal \(R\), \(G\), and \(B\) values. This allows them to appear neutral on a display and approximates the color constancy of human vision.

If the white-balance setting does not match the actual light source, neutral objects will no longer produce equal \(R\), \(G\), and \(B\) values, resulting in an overall color cast in the image.

2.3 Sensor and Color Filter Array

An image sensor does not directly perceive color. Its photosensitive elements measure light intensity but cannot distinguish between wavelengths on their own. To produce a color image, a color filter array (CFA)—most commonly a Bayer filter—is placed over the sensor. Each photosite samples light through a filter for one color channel, typically red, green, or blue. Consequently, only one color component is measured at each photosite, while the complete RGB values of each pixel are reconstructed through demosaicing, typically using interpolation.

This mechanism gives rise to two main classes of distortion. First, demosaicing reconstructs missing color channels by estimation rather than direct measurement. At object boundaries and in regions with abrupt color changes, this estimation may be inaccurate, producing false-color and zippering artifacts along edges. When a scene contains high-frequency, regularly repeating textures, such as fabrics or window screens, spatial sampling can cause aliasing, which may appear as colored moiré patterns.Second, the spectral transmittance of the color filter array does not perfectly match the spectral sensitivities of human cone photoreceptors or the color-matching functions of the CIE standard observer. As a result, the camera’s color response may exhibit systematic deviations from human color perception. Because different cameras use different color-filter designs, the direction and magnitude of these deviations vary between devices. This is one of the main reasons why the same object may be reproduced with different colors by different cameras.

3. Color Calibration

3.1 Why Is Color Calibration Necessary?

Human color perception results from the visual system’s processing of light under photopic conditions, in which cone photoreceptors predominate. Ideally, the spectral sensitivities of a camera’s three color channels should correspond to those of the three types of human cone photoreceptors. This requirement is known as the Luther condition.

Because practical camera systems do not fully satisfy this condition, their color responses differ systematically from human vision. Color calibration reduces this discrepancy by modeling the camera’s color response and estimating parameters that improve color reproduction. A principal tool for this purpose is the color correction matrix (CCM).

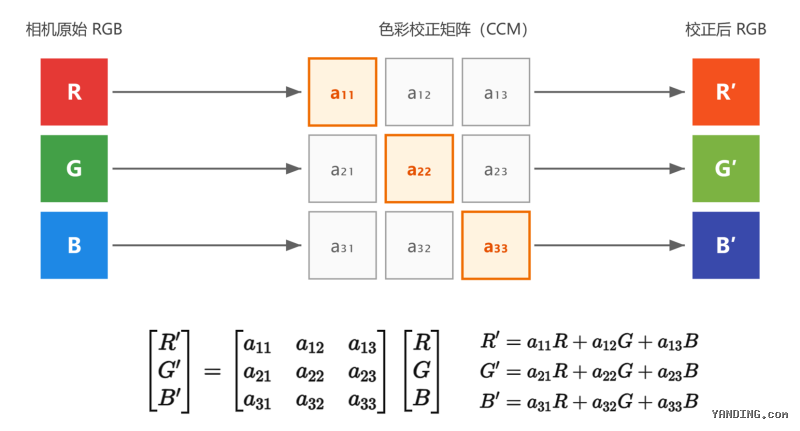

3.2 What Is a Color Correction Matrix?

A color correction matrix (CCM) is a \(3 \times 3\) matrix that transforms a camera’s linear RGB values into color coordinates in a standard color space, such as CIE XYZ. It corrects systematic color errors caused by differences between the spectral response of the camera and human color vision.

The nine matrix coefficients are obtained through color calibration. Typically, the camera photographs a standard 24-patch color chart, and the recorded values are compared with the corresponding reference values. The coefficients are then fitted to minimize the resulting color differences.
